Egress Rule

Egress rules control outbound network traffic from virtual machines (VMs) in an isolated guest network to external destinations such as the internet. These rules are vital for maintaining a secure and controlled network environment by preventing unauthorized communication from your cloud instances to external networks.

This guide walks you through the process of viewing and adding egress rules in the Cloud Management Portal.

What is an Egress Rule?​

Egress traffic refers to outbound packets—data that originates from your private cloud network and exits to a public network or the internet. Implementing egress rules helps prevent:

  • Data leakage from your internal/private address space.

  • Compromised VMs from communicating with malicious external hosts.

  • Unrestricted access from internal systems to the internet or other external endpoints.

By using egress rules, you define explicit boundaries for how and where data from your guest VMs can travel.

1. Accessing the Basic Network Section :​

  • Log in to your Cloud Management Portal using your authorized credentials.

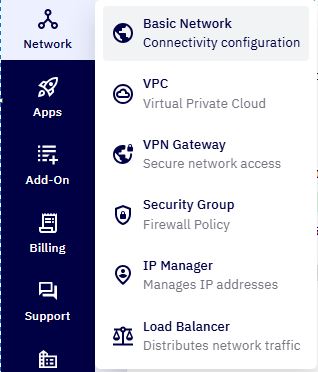

  • From the left navigation pane, go to:

    Network → Basic Network

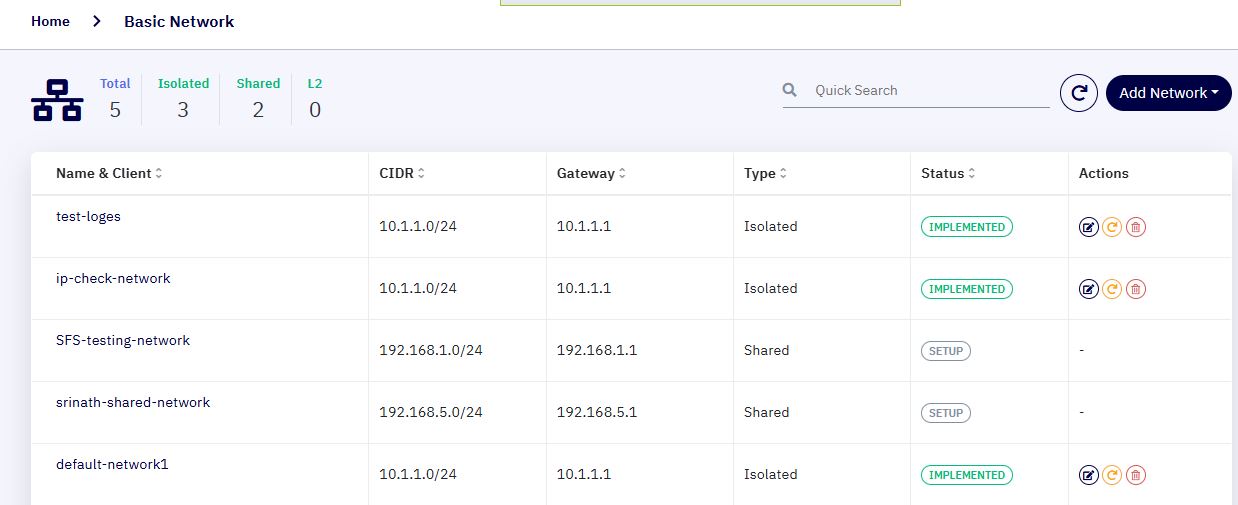

  • You will see a list of all existing networks associated with your cloud account.

2. Select the Target Network :​

  • Identify the isolated network where you want to apply the egress rule, and click on its network name.

  • This will take you to the Network Configuration page.

3. Access the Egress Rules Tab :​

  • Within the network configuration view, click the Egress Rules tab. This section displays any existing outbound traffic control rules for the selected network.

4. Click "Add Rule" :​

  • To create a new egress rule, click the Add Rule button.
  • A configuration pop-up window will appear.

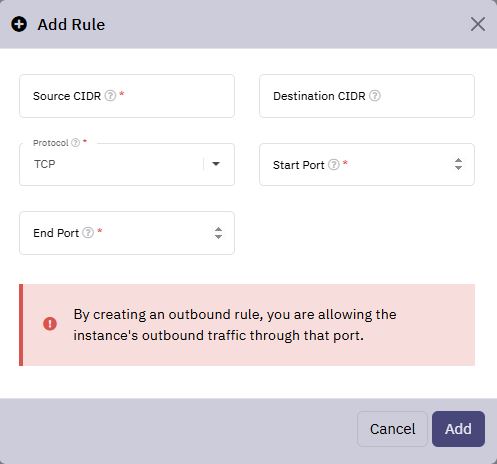

5. Egress Rule Configuration Fields :​

Fill in the following fields to define your rule:

  • Source CIDR : The IP address block that represents the source traffic. Use CIDR notation (e.g., 192.168.0.0/24).

  • Destination CIDR : The destination IP address block you wish to allow the traffic to reach (e.g., 0.0.0.0/0 for all internet addresses).

  • Protocol : Choose the network protocol used for outbound traffic. Options include: TCP – Reliable, connection-based protocol for most data services. UDP – Lightweight, connectionless protocol for real-time data. ICMP – Used for ping and network error messages

  • Start Port / End Port (for TCP/UDP) : Define the port range for the traffic. If you need a single port, use the same value in both fields (e.g., 443 for HTTPS).

  • ICMP Type / ICMP Code (for ICMP only) : Specify the type and code to manage ICMP traffic, such as Echo Request (Type 8, Code 0).

6. Finalizing the Rule :​

  • After reviewing your configuration, Click the Add button to apply the rule.

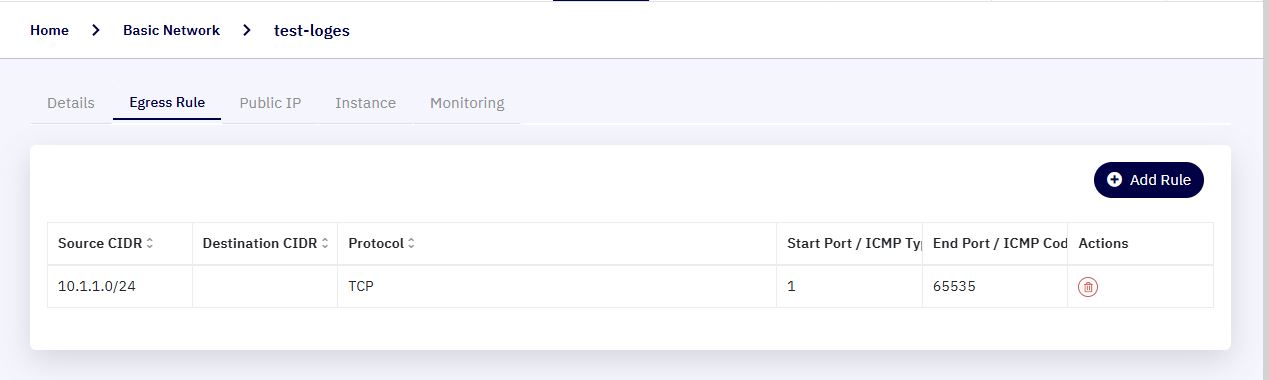

  • The newly created egress rule will now appear in the list of rules for the selected network.

  • Any virtual machines attached to this network will now have the egress restrictions enforced based on the rule you've defined.

Notes and Best Practices​

  • Use specific CIDR blocks and port ranges to limit unnecessary exposure.

  • Avoid using 0.0.0.0/0 as Destination CIDR unless absolutely necessary—it allows unrestricted outbound traffic.

  • Multiple rules can be created to serve different traffic types or destinations.

  • Egress rules only affect outbound traffic; for inbound control, refer to Ingress Rules.
