Security Group
Security Groups act as virtual firewalls for your cloud infrastructure, allowing you to define and manage firewall policies for virtual machines (VMs). These policies are essential for controlling both inbound (ingress) and outbound (egress) network traffic to ensure secure, compliant, and isolated environments.
Functional Features
1. Security Group List View
-
Displays all the available Security Groups with the following columns:
-
Name
-
Description
-
Status (Enabled/Disabled)
-
Actions (Manage button to edit/view rules)
-
-
A quick search feature allows users to find specific firewall groups quickly.
2. Add Security Group
To create a new Security Group:
-
Click the “Add” button.
-
Fill in:
-
Name (Required)
-
Description (Optional)
-
Status (Enable/Disable)
-
-
Click “Add” to save the group.
Security Group Management
After creating a group, you can manage its detailed firewall rules by clicking the “Manage” icon. The management view is organized into three tabs:
1. Egress Rule Tab :
- Defines outbound rules from the virtual machine to other destinations.
| Protocol | Start Port / ICMP Type | End Port / ICMP Code | Actions |
|---|---|---|---|
| All | All | All | Delete |
- Default behavior allows all outbound traffic unless customized.
2. Firewall Tab :
- Used to define inbound rules (i.e., what type of traffic is allowed to the VM).
| Source CIDR | Protocol | Start Port | End Port | Actions |
|---|---|---|---|---|
| 0.0.0.0/0 | TCP | 3389 | 3389 | Delete |
| 0.0.0.0/0 | TCP | 80 | 80 | Delete |
| 0.0.0.0/0 | TCP | 443 | 443 | Delete |
Example: The above rules allow access to RDP (3389), HTTP (80), and HTTPS (443) from all sources.
3. Port Forwarding Tab :
- Used for mapping private VM ports to publicly accessible ports, if required.
| Private Start Port | Private End Port | Public Start Port | Public End Port | Protocol | Actions |
|---|---|---|---|---|---|
| 80 | 80 | 80 | 80 | TCP | Delete |
4. Using Security Groups :

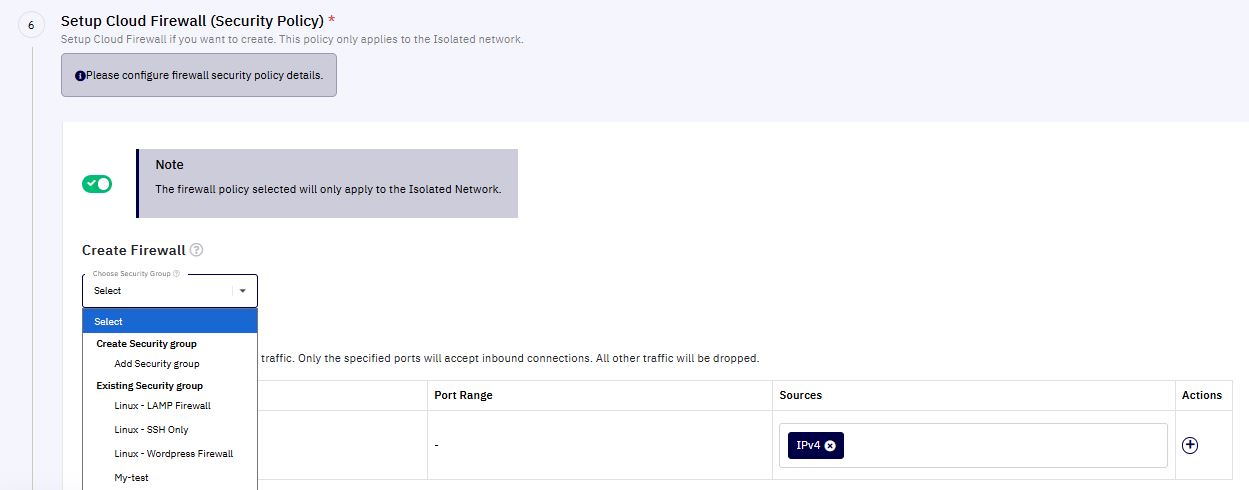

- All security groups listed under the Security Groups section will be available for selection during VM creation.
- You can use these groups as built-in rule sets when launching a VM. Additionally, you can define and apply custom rules alongside the selected security group during the VM setup process.
