VPC Peering

This guide explains how to configure a secure VPN tunnel between two Virtual Private Clouds (VPCs) within the Cloud Management Portal. VPC-to-VPC connectivity allows virtual machines (VMs) hosted in separate VPCs to securely communicate with each other over encrypted tunnels using IPsec VPN.

Unlike Private Gateway configurations—which require administrative-level involvement and dedicated networking setup—VPC-to-VPC VPN is a self-service option designed for users to configure through the portal UI without any admin assistance.

This document covers the entire setup process, including:

  • Creating VPN gateways and customer gateways

  • Configuring VPN connections (active/passive)

  • Ensuring successful connectivity

  • Key networking requirements

  • Basic troubleshooting

Networking Requirements​

Before proceeding with VPN configuration, it’s essential to understand and validate your network structure:

  • Unique IP Ranges: Ensure each VPC uses distinct IP ranges. Overlapping CIDR ranges will prevent traffic from routing over the VPN tunnel.

  • Public IP Availability: VPN tunnels use public IPs (Source NAT) assigned to each VPC for external routing.

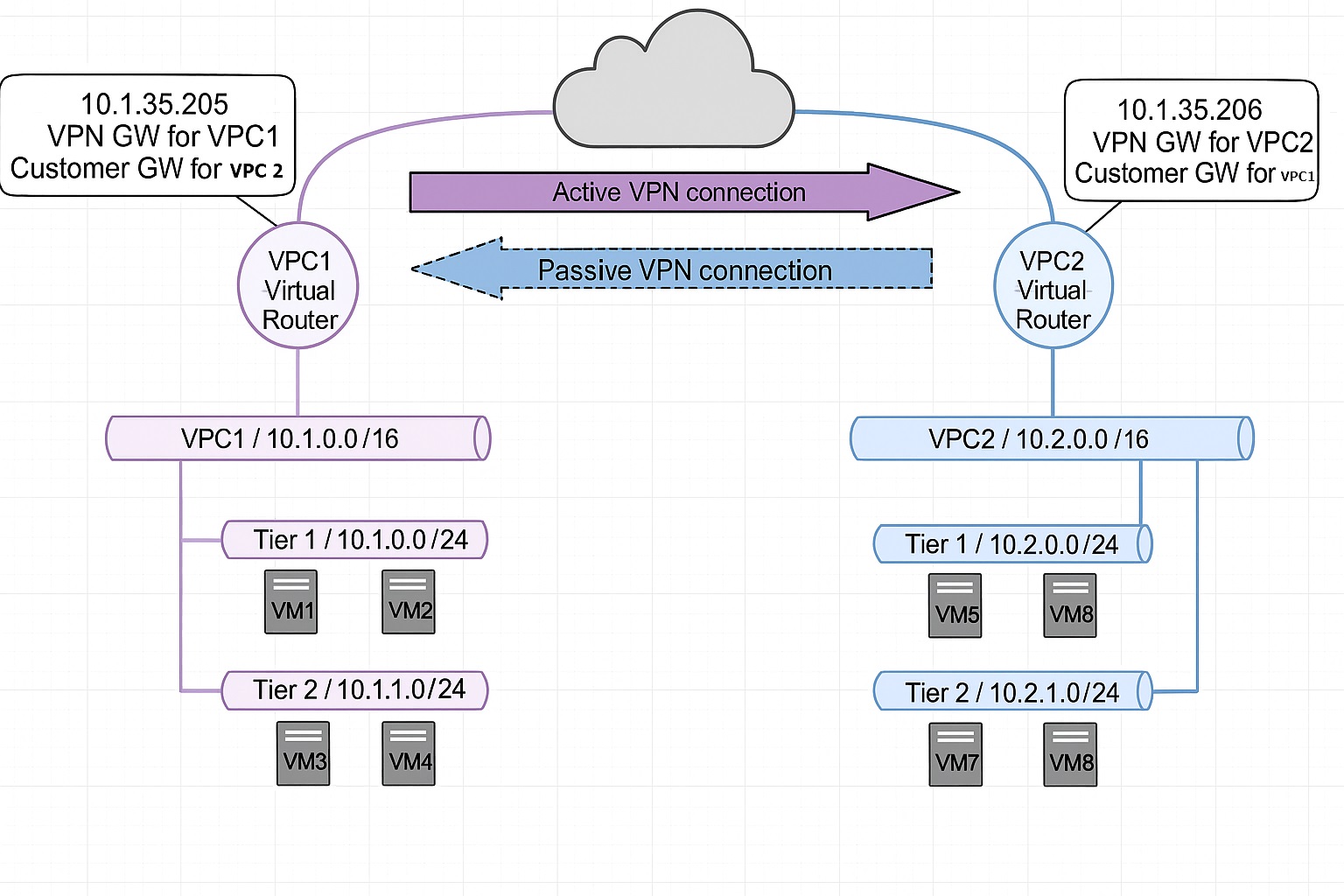

VPCSuper CIDRTier1Tier2
VPC110.1.0.0/1610.1.0.0/2410.1.1.0/24
VPC210.2.0.0/1610.2.0.0/2410.2.1.0/24

The two V PC's can belong to the same or different user accounts and even operate across separate portal deployments. However, if using different cloud environments, VPN compatibility should be verified.

Key Components​

1. VPN Gateway​

The VPN Gateway is the local VPN endpoint that allows incoming VPN connections. It is configured on the Source NAT IP of the virtual router within the VPC.

  • It is created automatically when VPN is enabled on a VPC.

  • Only one gateway exists per VPC.

2. VPN Customer Gateway​

The Customer Gateway defines the remote VPN endpoint you want to connect to. You must configure:

  • Name: A user-friendly identifier.

  • Gateway IP: The public-facing IP of the remote VPC router.

  • CIDR List: List of remote network ranges (comma-separated) that your local VPC can communicate with.

  • IPsec Pre-Shared Key: A secure shared secret for authentication.

  • IKE and ESP Parameters: Define encryption algorithms, hashing, lifetime, and Perfect Forward Secrecy (PFS).

3. VPN Connection​

This establishes the encrypted tunnel between your VPC and the remote VPC.

  • Active Mode: The VPC initiates the tunnel. Used when your VMs consume remote resources.

  • Passive Mode: The VPC waits for incoming VPN connection requests. Used when your VMs host resources for others.

Important: Ensure resources on both ends are reachable through the CIDR blocks configured in the customer gateways.

Step-by-Step Configuration​

1: Create and Configure VPC Networks​

  • Ensure that both VPCs are created with proper CIDR blocks and associated ACLs configured. Refer to the VPC creation guide for details.

2. Create VPN Customer Gateways​

3. Create VPN Gateways​

  • Refer to the VPN Gateway link for more details.

  • Repeat this process on the second VPC.

Note: Each VPC can have only one VPN Gateway, automatically associated with its Source NAT IP.

4. Configure VPN Connections​

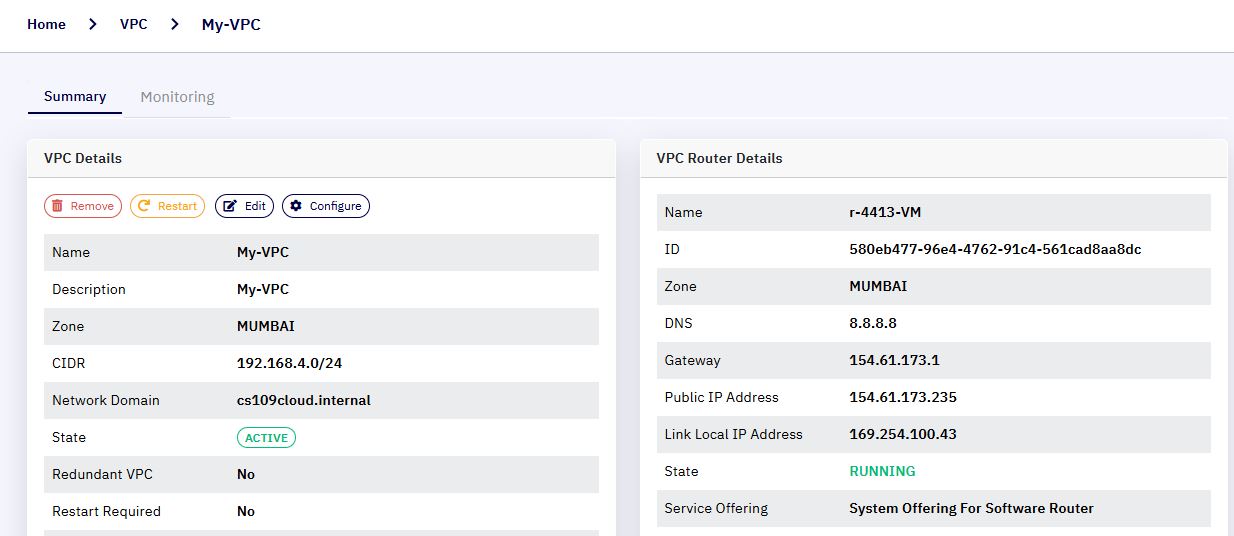

  • Click on the VPC name (e.g., VPC1) to view its details.

  • On the VPC details page, click the Configure button.

  • This action will take you to the VPC Configuration Dashboard.

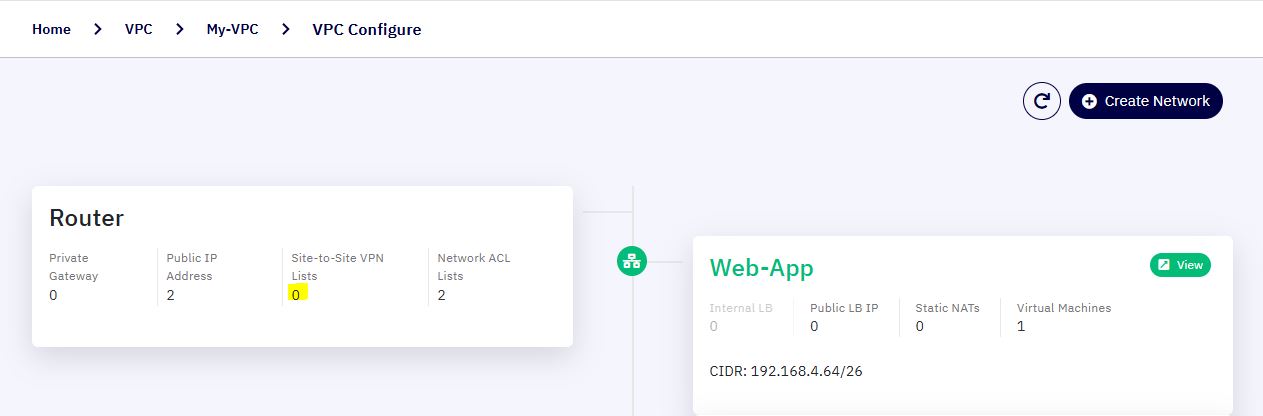

  • In the VPC configuration page, scroll to the Router section.

  • Click on the link labeled Site-to-Site VPN Lists.

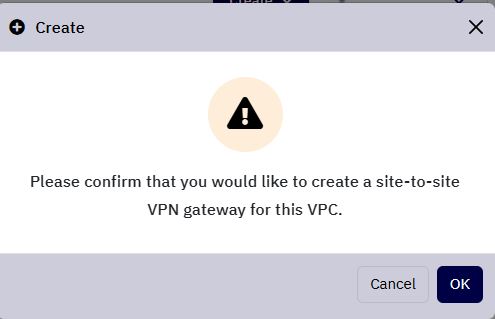

Note: If this is the first time you are enabling VPN for this VPC, a pop-up dialog will appear with the message:
"Please confirm to create S2S VPN gateway for this VPC."

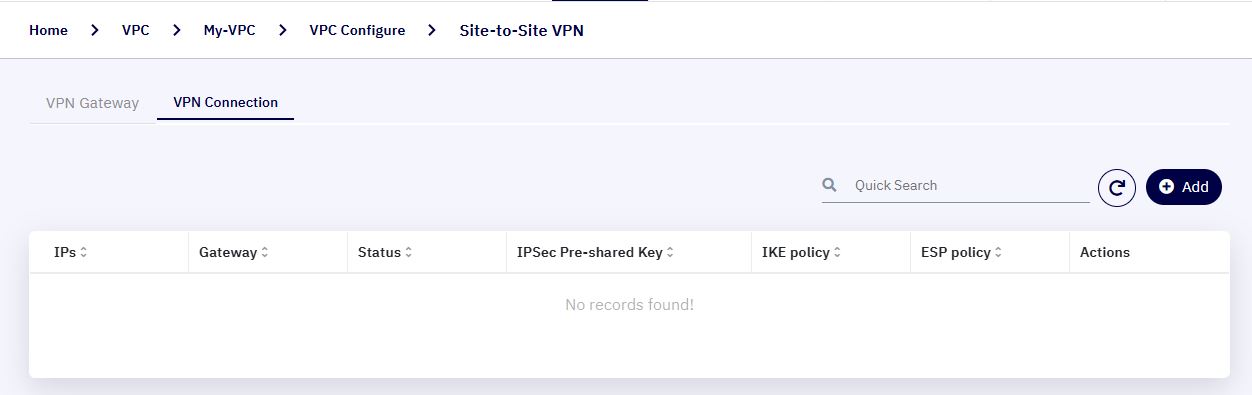

  • Navigate to the VPN Connection tab within the VPN Gateway configuration page.

  • Click on the Add button to start configuring a new connection.

  • A pop-up window will appear prompting you to select a Customer Gateway.

  • Use the drop-down list to select the appropriate Customer Gateway that matches your external VPN device settings. Enable the Passive checkbox.

  • Click OK to initiate the VPN connection setup.

  • Now, repeat the process from the second VPC (VPC2)

Validation and Troubleshooting​

  • Once configured, refresh both VPN Connections pages and verify that the status is Connected.

  • If the connection doesn’t establish automatically, go to the active connection (from VPC1) and click Reset VPN Connection.

  • From the VPC1 side, try to ping VPC2 instances using internal (private) IPs to confirm connectivity.

Summary​

With VPC-to-VPC VPN enabled:

  • You can seamlessly integrate workloads across isolated VPCs.

  • Resource sharing, centralized services, and high-availability clusters across regions are now possible.

  • Configuration is self-service and requires no administrator approval.
