Security Group Firewall

  • The purpose of Security groups in StackBill CMP is to isolate traffic to virtual machines.

  • Security groups are groups of virtual machines that filter their traffic based on ingress and egress rules.

  • According to these rules, network traffic is filtered according to the IP address trying to communicate with the virtual machine.

  • The use of security groups is especially useful in zones using basic networking, since all guest VMs have their own network.

  • The KVM hypervisor is the only hypervisor that supports security groups in advanced zones.

Add security group in StackBill CMP​

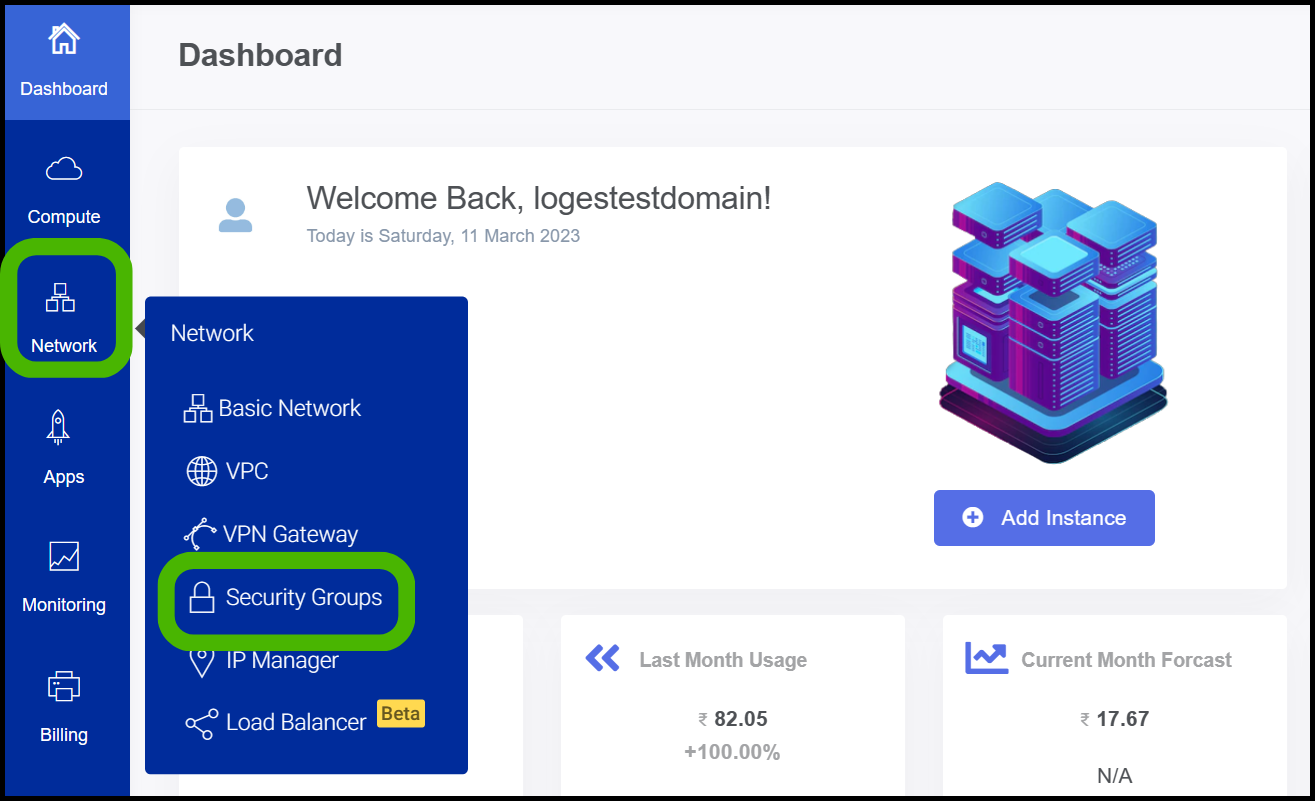

  • Click on the Network dropdown button below the compute icon, Which is available in the top left corner. from the dropdown, Click on Security Groups option.
StackBill simplified cloud management portal
  • Security groups screen appears
StackBill simplified cloud management portal

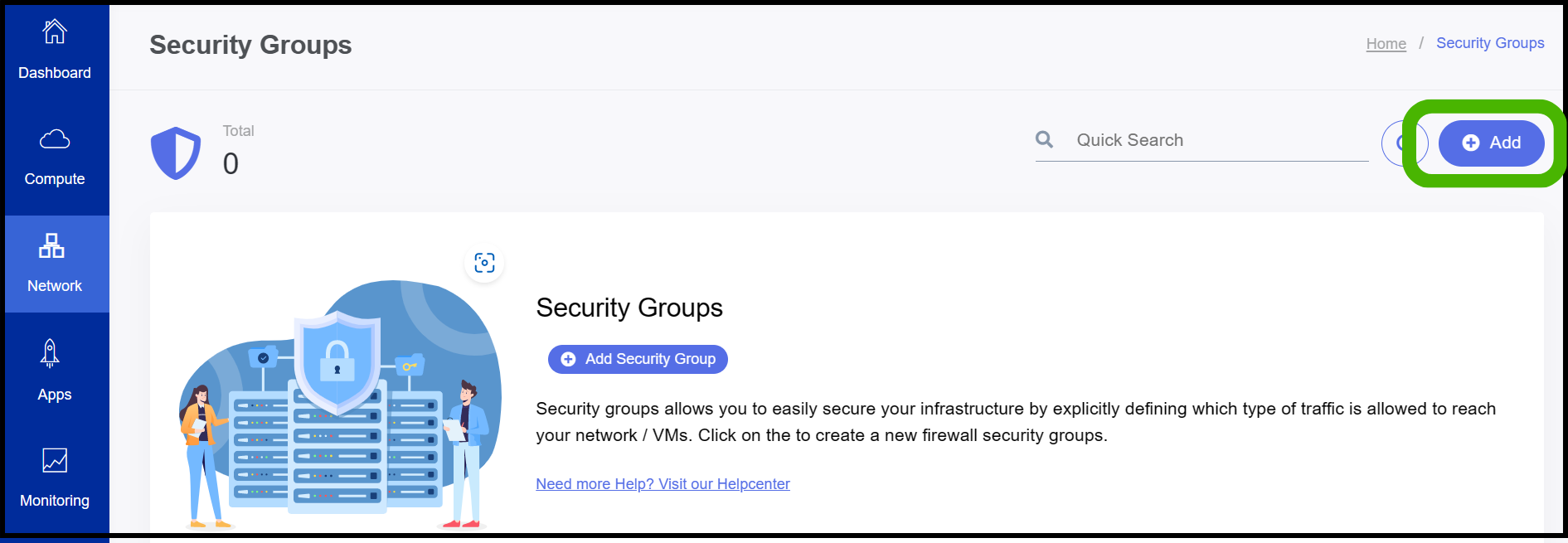

  • At the right side of the panel the user can able to see a button called Add, click on it.
StackBill simplified cloud management portal

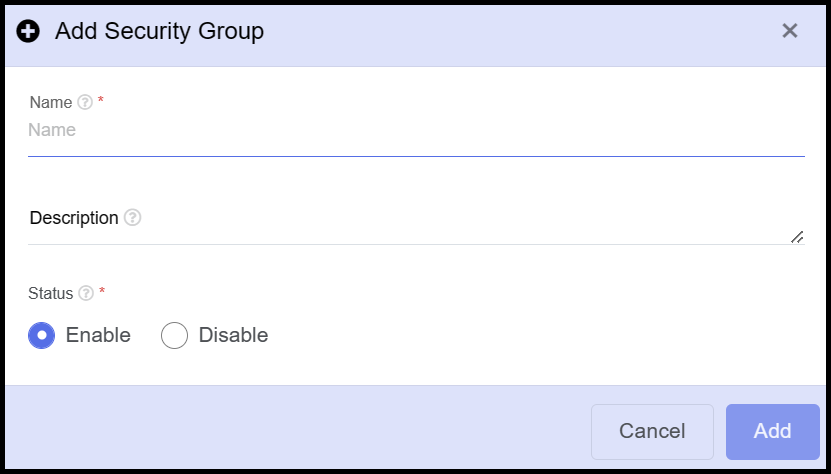

  • Enter the name and give a short description
  • And select the status.
  • Finally, Click on Add button.
StackBill simplified cloud management portal

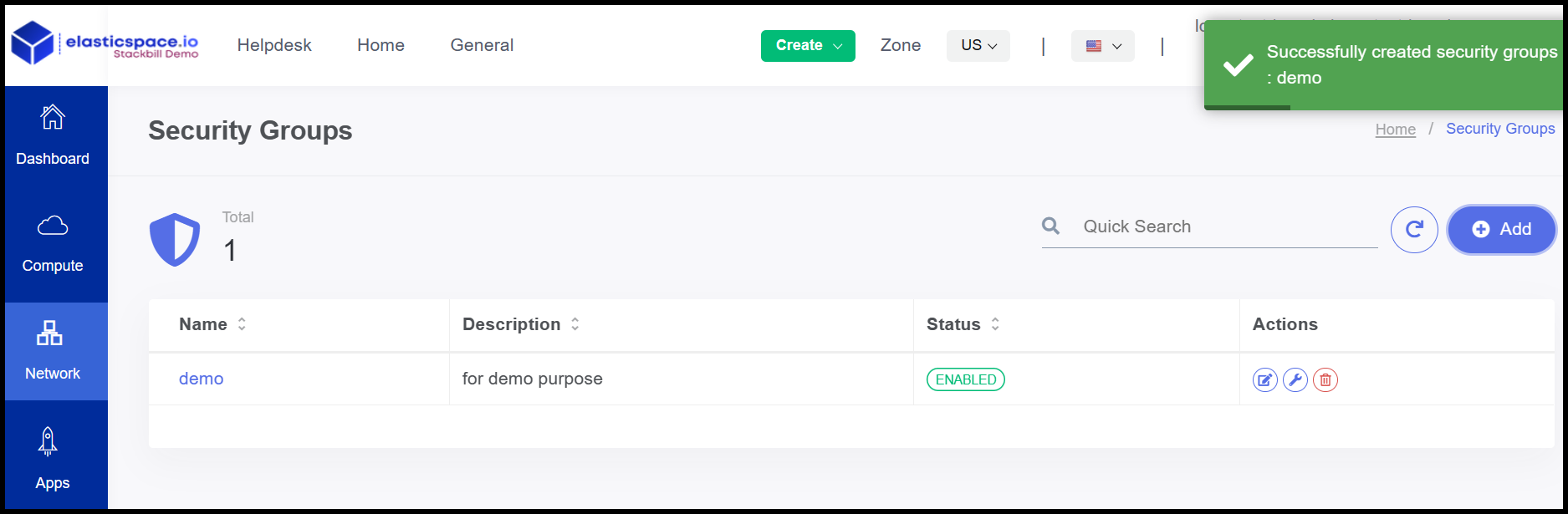

  • Now the security group has been created successfully.
StackBill simplified cloud management portal

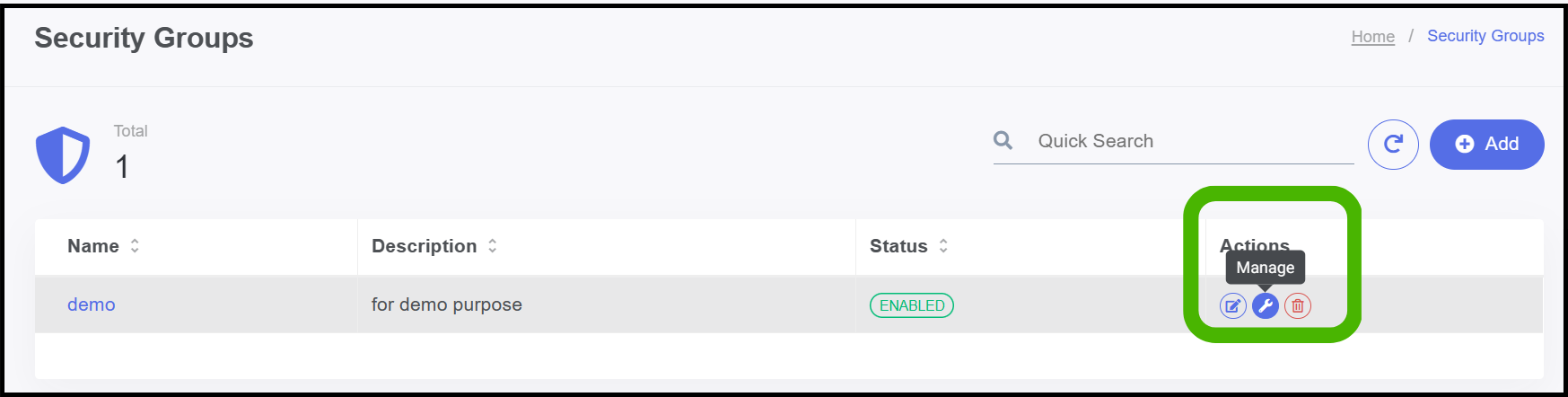

  • In the Action section we can edit,manage,and delete the security group.
